Cheapest Price Rotary Airlock Valve Price - HMC series pulse cloth bag dust collector – Xintian Detail:

HMC series pulse cloth bag dust collector is a single type bag dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.
When the dust gas enters into the cloth bag dust collector from air induced system, due to the decrease of wind speed, the dust particles with a large proportion settle into the ash hopper, and the lighter dust depends on the air induction to reach the surface of dust removal filter bag. The filter bag of dust collector generally uses needle felt as the filter carrier, and the filtration accuracy can reach <1um. The dust is blocked on the surface by the filter bag, and the dust gas is purified through the filter bag. With the increasing of time, more and more dust is filtered on the surface of filter bag, so the resistance of the filter bag is gradually increased. In order to make the dust collector work normally, when the resistance rises to a limited range, the electronic pulse controller issues instructions to follow the order. The sequence triggers each control valve to open the pulse valve, and the compressed air in the gas storage bag of dust collector is sprayed into the corresponding filter bag by each injection hole of the injection pipe. The filter bag expands rapidly under the instantaneous reverse action of air flow, which makes the dust attached to the surface of the filter bag fall off and makes the filter bag achieve the most original air permeability filtration effect. The cleared dust falls into the ash hopper and drains out of the body through the ash removal system to complete the whole ash cleaning and filtration process.
Technical Parameters of Equipment Selection:

Equipment Model

HMC-24

HMC-32

HMC-36

HMC-48

HMC-64

HMC-80

Total Filtration Area m²

20

25

30

40

50

64

Filtration Velocity m³/min

1.0-2.0

Air Volume m³/h

1200-2400

1500-3000

1800-3600

2400-4800

3000-6000

3840-7680

Quantity of Filter Bag

24

32

36

48

64

80

Specification and Material of Filter Bag

130*2000mm

Air Outlet Dust Concentration mg/m³

≤30

Beard Negative Pressure Pa

5000

Equipment Running Resistance Pa

800-1200

Injection Pressure Mpa

0.4-0.6

Electromagnetic

Specification

DMF-Z-25(G1″)

Quantity

4

4

6

6

8

8

Induced Draft Fan Model

4-72-2.8A

4-72-3.2A

4-72-3.6A

4-72-3.6A

4-72-4A

4-72-4.5A

Power of Motor

1.5kw

2.20kw

3kw

4kw

5.5kw

7.5kw

Equipment Model: HMC- 160B Pulse Cloth Bag Dust Collector
Application Field: Dust removal of combined grinder, grooving machine, grinding and cutting machine.

Equipment Model

HMC-96

HMC-100

HMC-120

HMC-160

HMC-200

HMC-240

Total Filtration Area m²

77

80

96

128

160

192

Filtration Velocity m³/min

1.0-2.0

Air Volume m³/h

4620-9240

4800-9600

5760-11520

7680-15360

9600-19200

11520-23040

Quantity of Filter Bag

96

100

120

160

200

240

Specification and Material of Filter Bag

130*2000mm

Air Outlet Dust Concentration mg/m³

≤30

Beard Negative Pressure Pa

5000

Equipment Running Resistance Pa

800-1200

Injection Pressure Mpa

0.4-0.6

Electromagnetic

Specification

DMF-Z-25(G1″)

Quantity

12

10

12

16

20

20

Induced Draft Fan Model

4-72-4.5A

4-72-4.5A

4-72-5A

4-72-5A

4-68-8C

4-68-6.3C

Power of Motor

7.5kw

7.5kw

11kw

15kw

18.5kw

22kw

*HMC series pulse cloth bag dust collector
image16Product Description:

Pulse bag filter is a kind of dry dust removal device, also known as the filter separator, it is to use fiber knitting bag filter element to capture the dust in the gas solid particles of dust removal device, its action principle is the dust through the filter cloth fiber were intercepted by inertia effect contact with fiber, collected on the filter bag dust regularly by clearing the ash removal device and fall into ash hopper, and then  through the ash system to draining out .

HMC series pulse cloth bag dust collector is a single type baghouse dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.Manufacturers pulse jet bag filter Cement Dust Collection Systems.
image17Technical Parameters of Equipment Selection:

image18image19

Applications

Packaging and shipping
image8 image15




Product detail pictures:


Related Product Guide:

We are experienced manufacturer. Wining the majority of the crucial certifications of its market for Cheapest Price Rotary Airlock Valve Price - HMC series pulse cloth bag dust collector – Xintian , The product will supply to all over the world, such as: Chile, Bahamas, United States, Our products have been obtained more and more recognition from foreign clients, and established long term and cooperative relationship with them. We`ll provide the best service for every customer and sincerely welcome friends to work with us and establish the mutual benefit together.
It can be said that this is a best producer we encountered in China in this industry, we feel lucky to work with so excellent manufacturer.
5 Stars By Julie from Gambia - 2018.06.12 16:22
Perfect services, quality products and competitive prices, we have work many times, every time is delighted, wish continue to maintain!
5 Stars By Fiona from Berlin - 2017.08.21 14:13
Write your message here and send it to us

Related products

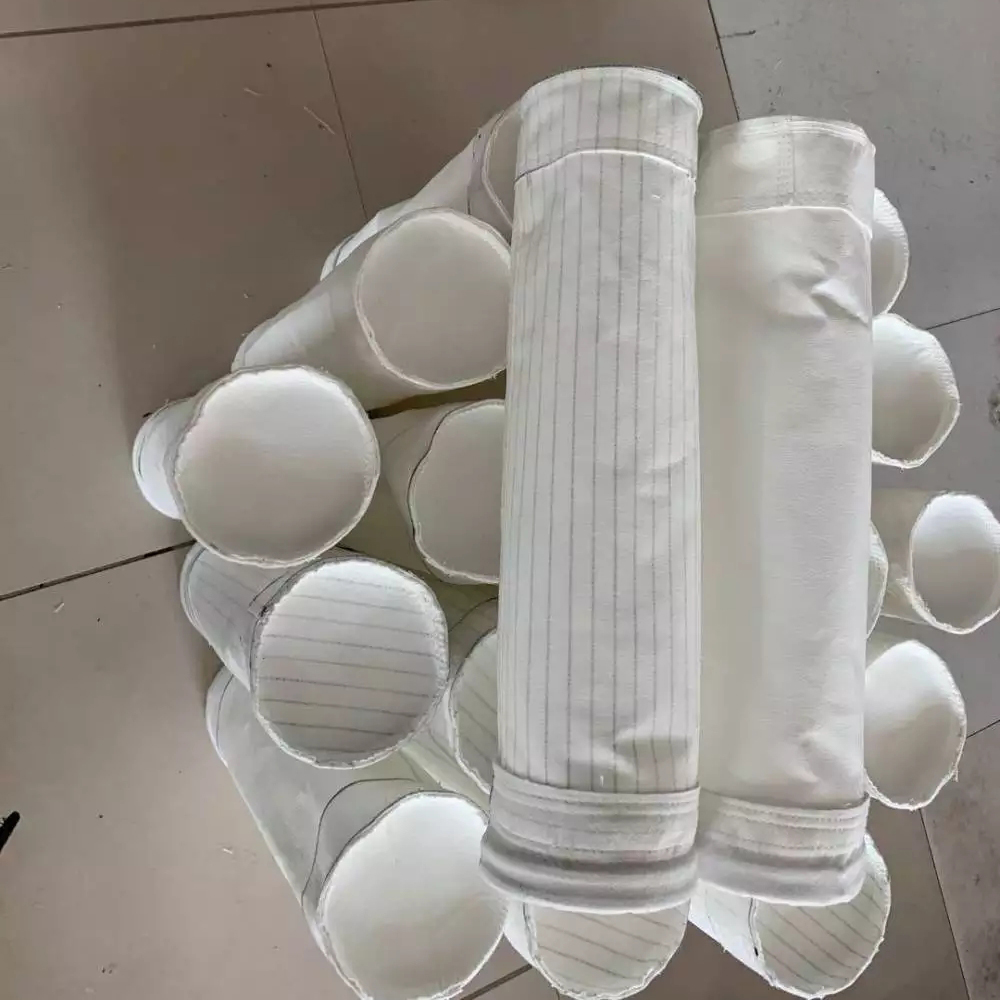

  • Hot-selling Fabric Filter Baghouse - Polyester Needle-Punched Felt Bag – Xintian

    Hot-selling Fabric Filter Baghouse - Polyester...

    Its main use of synthetic fiber, from the plane, for a single fiber irregular staggered combination; Viewed from the direction of section, the needle moving at a certain Angle in the opposite plane makes the single fiber show a complex complexing state . 1, Good air permeability: compared with other fabric filter material, the biggest difference is the pore shape in the filter material. 2, High dust collection efficiency: needled felt (dust bag) single fiber complex, so that the formation of ...

  • OEM Customized Dust Collector Machine For Industry - Filter Cartridge Dust Collector Equipment – Xintian

    OEM Customized Dust Collector Machine For Indus...

    Pulse filter cartridge dust collector is mainly used in the centralized dust removal system of large factories, with large air volume treatment, small area, suitable for the whole workshop of large factories centralized dust removal, and all the dust from grinding, welding, sand cleaning, mixing, stirring, screening and other processes can be centralized treatment . This series of filter cartridge dust collector is generally arranged outdoors and adopts oblique plug filter cartridge structure...

  • Quality Inspection for Baghouses - High and Low Voltage Electrical Control Cabinet of Dust Collector – Xintian

    Quality Inspection for Baghouses - High and Lo...

    High and Low Voltage Electrical Control Cabinet of Dust Collector Specializing in production of dust collector switchgear, control cabinet, high voltage electrostatic precipitator low voltage control cabinet, PLC automatic control system, microcomputer automatic control system, single chip microcomputer automatic control system, industrial network remote control system. Pneumatic technology takes air compressor as power source and compressed air as working medium to carry out energy transfer ...

  • Competitive Price for Pulse Jet Fabric Filter Bags - High-temperature PPS Needle-punched Filter Felt Bag – Xintian

    Competitive Price for Pulse Jet Fabric Filter B...

    Beauty, dust bag with resistance to high temperature (204 ~ 240 ℃), strong acid, alkali, high filtering speed, low pressure loss, and the characteristics of the folding, good resistance to wear, but is not in the heat resistance to hydrolysis, mainly used in the asphalt mixing station flue gas, steel blast furnace gas, flue gas, carbon black (white carbon black) exhaust, cement kiln kiln kiln head, at high temperature furnace flue gas, Firebrick furnace smoke and coking smoke and other workin...

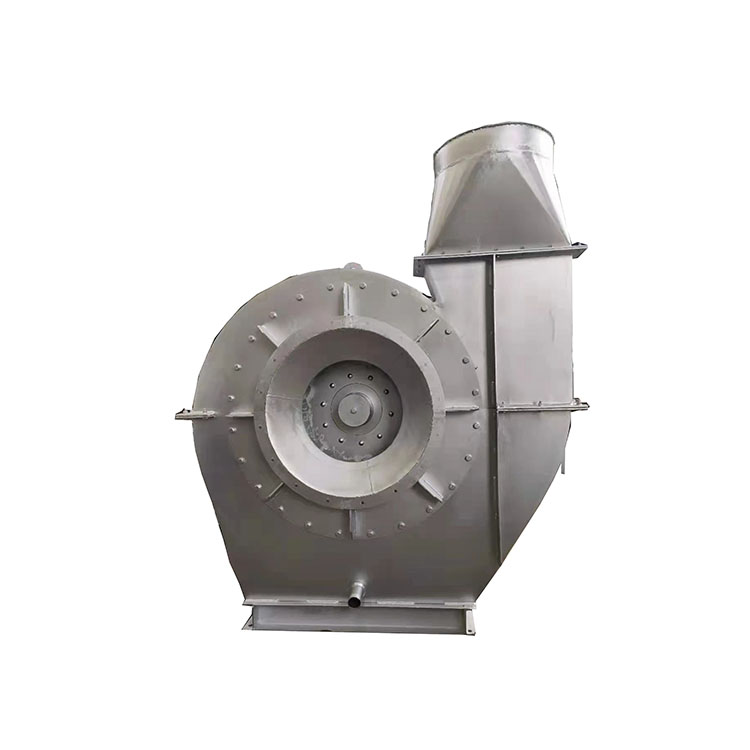

  • Factory made hot-sale Star Valve - Industrial Kilns Large Volume Centrifugal Fan Induced Draft Heavy Duty Blower – Xintian
