Y JD series Star Unloader

  • Electric YJD dust collector unloading DN 250 valve rotary airlock valve star discharge feeder

    Electric YJD dust collector unloading DN 250 valve rotary airlock valve star discharge feeder

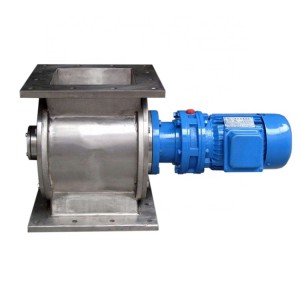

    Airlock valve,also named discharge valve,star discharger,cindervalve,is an important equipment for pneumatic conveying system and dust removal system.

    It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure evironment.
    The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fibre continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.

  • Cement factory rotary vane feeder rotary valve airlock

    Cement factory rotary vane feeder rotary valve airlock

    Airlock valve,also named discharge valve,star discharger,cindervalve,is an important equipment for pneumatic conveying system and dust removal system.

    It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure evironment.
    The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fibre continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.

  • Y JD series Star Unloader

    Y JD series Star Unloader

    YJD-A/B series unloading device, also known as electric ash unloading valve and electric lock valve, consists of three parts: motor, tooth difference planetary reducer (X) or pinwheel cycloid reducer (Z) and rotary unloader. There are two series and 60 specifications The square flanges of import and export are type A, and the circular flanges are type B The device is a dust removal equipment, the main equipment for conveying, discharging ash, locking air and other equipment feeding. It is sui...
  • Industrial dust collector discharge the material tool low pressure casting motor YJD rotary airlock valve design

    Industrial dust collector discharge the material tool low pressure casting motor YJD rotary airlock valve design

    Industrial dust collector discharge the material tool low pressure casting motor YJD

    rotary airlock valve design


    Product Description

    Airlock valve,also named discharge valve,star discharger,cindervalve,is an important equipment for pneumatic conveying system and dust removal system.
    It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure evironment.
    The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fibre continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.

    photobank (7)

    photobank (144)

    photobank (122)

    Working Principle:

    Material falls onto the blades and rotates with the blades to the outlet under the airlock valve.Material can be discharged continuously.
    In pneumatic conveying system,the airlock valve can lock the air and supply material continuously. The low speed of the rotor and tiny space can prevent the airflow from reverse flow,and ensure a stable air pressure and regular discharge of the material.The arilock valve acts as the material discharger in the material collecting system.
    Technical parameters of A/B-X/Z  YJD unloader:

    Model Name

    Data

    YJD
    2

    YJD
    4

    YJD
    6

    YJD
    8

    YJD
    10

    YJD
    12

    YJD
    14

    YJD
    16

    YJD
    18

    YJD
    20

    YJD
    26

    YJD
    30

    Unloader L/r

    2

    4

    6

    8

    10

    12

    14

    16

    18

    20

    26

    30

    Unloader m³/h

    4.08

    8.16

    12.24

    16.32

    20.4

    24.48

    28.56

    36.64

    36.72

    40.8

    50.64

    61.2

    Inner diameter mm

    150

    180

    200

    220

    240

    260

    280

    300

    320

    340

    400

    440

    r/min

    Type Z

    25-40(standard speed:34r/min)

    Working temperature °C

    T ≤80°C  T ≤200°C

    Materiel

    Powdery, granular

    Electric machinery

    Model

    Y801

    Y802-4

    Y90S-4

    Y90L-4

    Y100L1-4

    Y100L2-4

    KW

    0.55

    0.75

    1.1

    1.5

    2.2

    3

    r/min

    1390

    1400

    1430

    Weight kg

    53

    71

    86

    101

    121

    141

    161

    181

    191

    221

    251

    301
