Cast iron electric rotary airlock valve under the cyclone dust collector

Short Description:

Cast iron electric rotary airlock valve under the cyclone dust collector


Product Description

Airlock valve,also named discharge valve,star discharger,cindervalve,is an important equipment for pneumatic conveying system and dust removal system.
It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure evironment.
The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fibre continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.

photobank (7)

photobank (144)

photobank (122)

Working Principle:

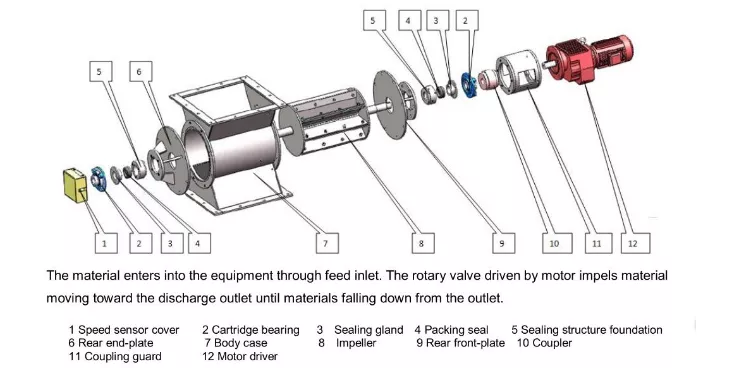

Material falls onto the blades and rotates with the blades to the outlet under the airlock valve.Material can be discharged continuously.
In pneumatic conveying system,the airlock valve can lock the air and supply material continuously. The low speed of the rotor and tiny space can prevent the airflow from reverse flow,and ensure a stable air pressure and regular discharge of the material.The arilock valve acts as the material discharger in the material collecting system.
Technical parameters of A/B-X/Z  YJD unloader:

Model Name

Data

YJD
2

YJD
4

YJD
6

YJD
8

YJD
10

YJD
12

YJD
14

YJD
16

YJD
18

YJD
20

YJD
26

YJD
30

Unloader L/r

2

4

6

8

10

12

14

16

18

20

26

30

Unloader m³/h

4.08

8.16

12.24

16.32

20.4

24.48

28.56

36.64

36.72

40.8

50.64

61.2

Inner diameter mm

150

180

200

220

240

260

280

300

320

340

400

440

r/min

Type Z

25-40(standard speed:34r/min)

Working temperature °C

T ≤80°C  T ≤200°C

Materiel

Powdery, granular

Electric machinery

Model

Y801

Y802-4

Y90S-4

Y90L-4

Y100L1-4

Y100L2-4

KW

0.55

0.75

1.1

1.5

2.2

3

r/min

1390

1400

1430

Weight kg

53

71

86

101

121

141

161

181

191

221

251

301
