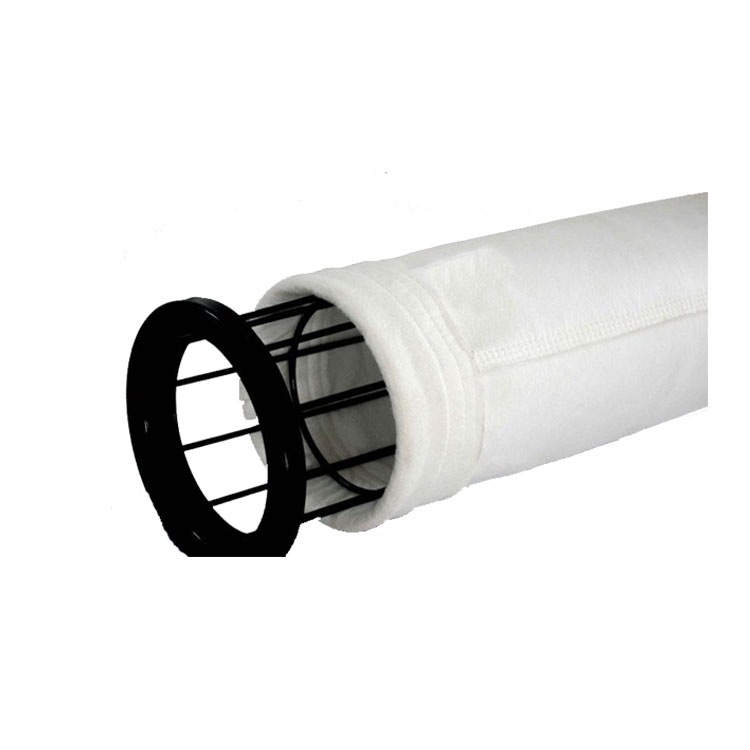

High Quality Pleated Dust Bag Filter Cage

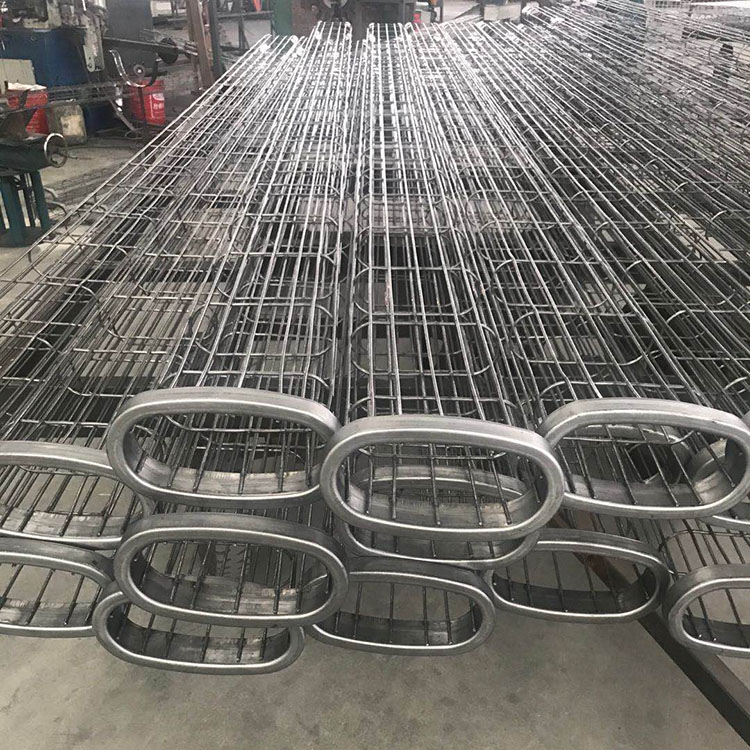

The framework is the "rb"of the filter bag.It is welded once by automatic welding equipment.the welding is firm and the appearance is smooth and straight,so that the filter bag is not damaged.It is light and easy to install and maintain.Zinc plating or plastic spraying process is used for surface post-treatment.

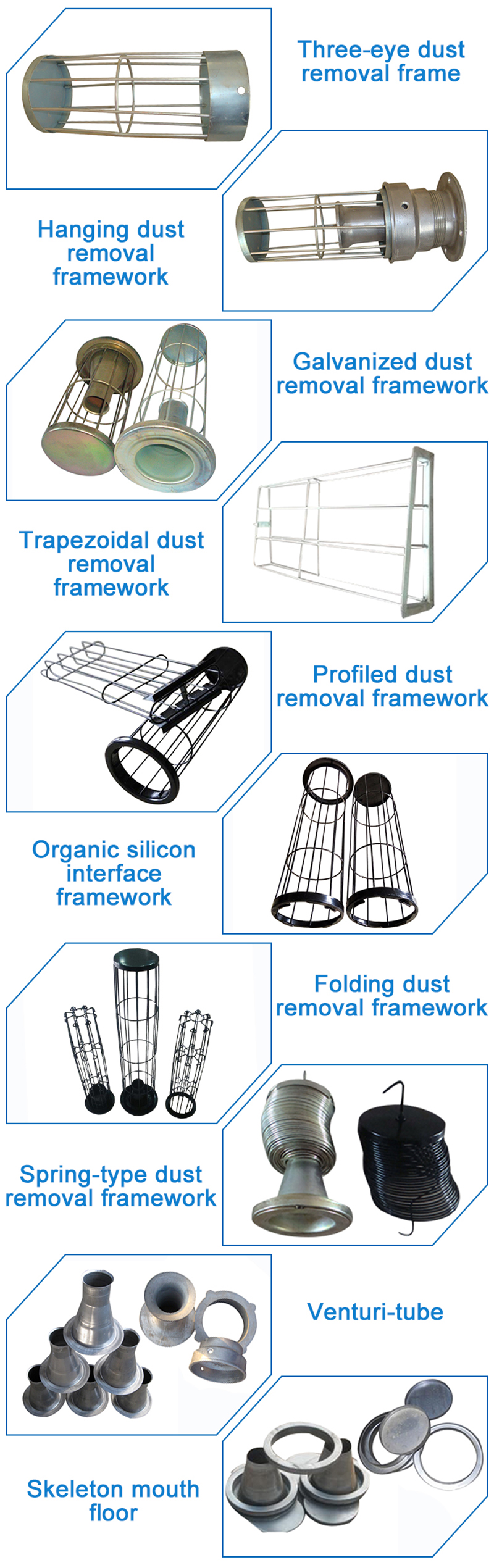

Dust removal framework is one of the indispensable main accessories of cloth bag dust remover. It can be compatible with six, eight, ten, twelve, sixteen, eighteen, twenty, twenty-four bars. The role of dust removal framework is very large, and the quality of the bag seriously affects its service life.It is widely used in metallurgy, chemical industry, coking, power generation, non-ferrous smelting, iron and steel, building materials, coal mining and other industries.
The dedusting skeleton is the rib of the filter bag. It should be light and easy to install and maintain. The quality of the frame directly affects the filtering state and service life of the filter bag.Adopt natural granite, after mechanical processing into circular bending plate, the overall structure is smooth and smooth.It is resistant to erosion, wear and high temperature.Externally cast with high strength heat resistant acid and alkali resistant material.The outer steel plate of the cylinder equipment greatly enhances the strength and service life of the equipment.The body adopts the structure of 1 meter per section, and each joint has concave and convex joints. During installation, furan resin or acid and alkali resistant cement is used to connect the joints to ensure that the joints do not leak.Overcome the common problems of water seepage and air leakage in the joints of the original granite dust collector.The upper water tank is of ceramic structure, and the ceramic dust collector ensures no water leakage in the process of water supply, which avoids the frustration of water seepage in the water tank of the original granite dust collector and enhances the use effect of the dust collector.The installation is simple, usually each section is 1 meter, and the site hoisting can be completed in half a day, reducing the construction cycle.

Technical parameter

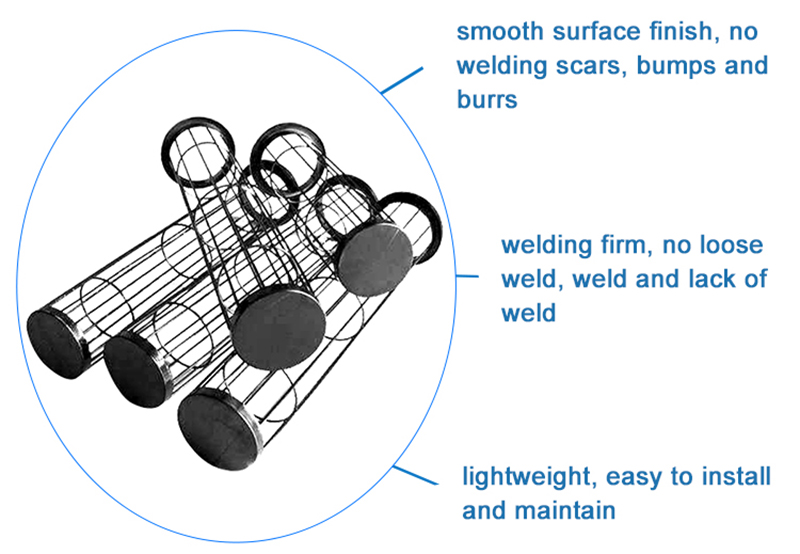

Show details

1. Quality steel wire material, smooth without burrs

2. The plating layer is firm and does not rust, and it is convenient to replace the cloth bag

3. The solder joints are firm, without desoldering, missing soldering and breaking

4. Circular multi-rib design, strong support to prevent damage and deformation

Application

Packaging and Shipping
