Product description:
PTL series submersible large-scale filter cartridge dust collector is a multi-wheel
Optimized design, added explosion-proof discharge port, optional discharge method,
The position of the air inlet of the air duct can be flexibly adjusted according to the user’s site.
Air bag and pulse valve, oblique plug-in fast opening and closing filter cover, matching
The safety inspection ladder is extremely convenient for inspection and repair.
Scope of application
Suitable for foundries, shipyards, painting plants, steel structure plants, stone materials Plant, grain processing plant, powder metallurgy plant, chemical plant, mining plant ，centralized dust collection and treatment in other places.
Technical parameter
1. Filtering area: 140 ㎡; filtering wind speed: 0.02m/s; filtering efficiency: ≥99.95% 18 pcs ∮320*665 filter cartridges
2. Handling air volume: 9500-13000m³/h Fan air pressure: total pressure 2.6Kpa
3. The content of discharged particulate matter: 4-20 mg/m³ (according to the material of the filter cartridge)
4. Air inlet temperature requirement: less than 60℃
5. Import concentration limit: less than 800mg/m3, if the concentration is too high, cyclone pretreatment equipment should be added
6. Working resistance: no-load state: 300～600Pa at 20°; 300～1500Pa under normal operation;
7. Total equipment weight: 1000Kg
8. Total power of equipment: 15KW
9. Power supply voltage: 380V (AC), 50Hz (GB)
10. Air supply pressure: 0.5～0.8Mpa; Flow rate: >0.5m³/min
11. Noise: less than 72 decibels detected from 1 meter away (with silencer); except for interval pulse blowback noise

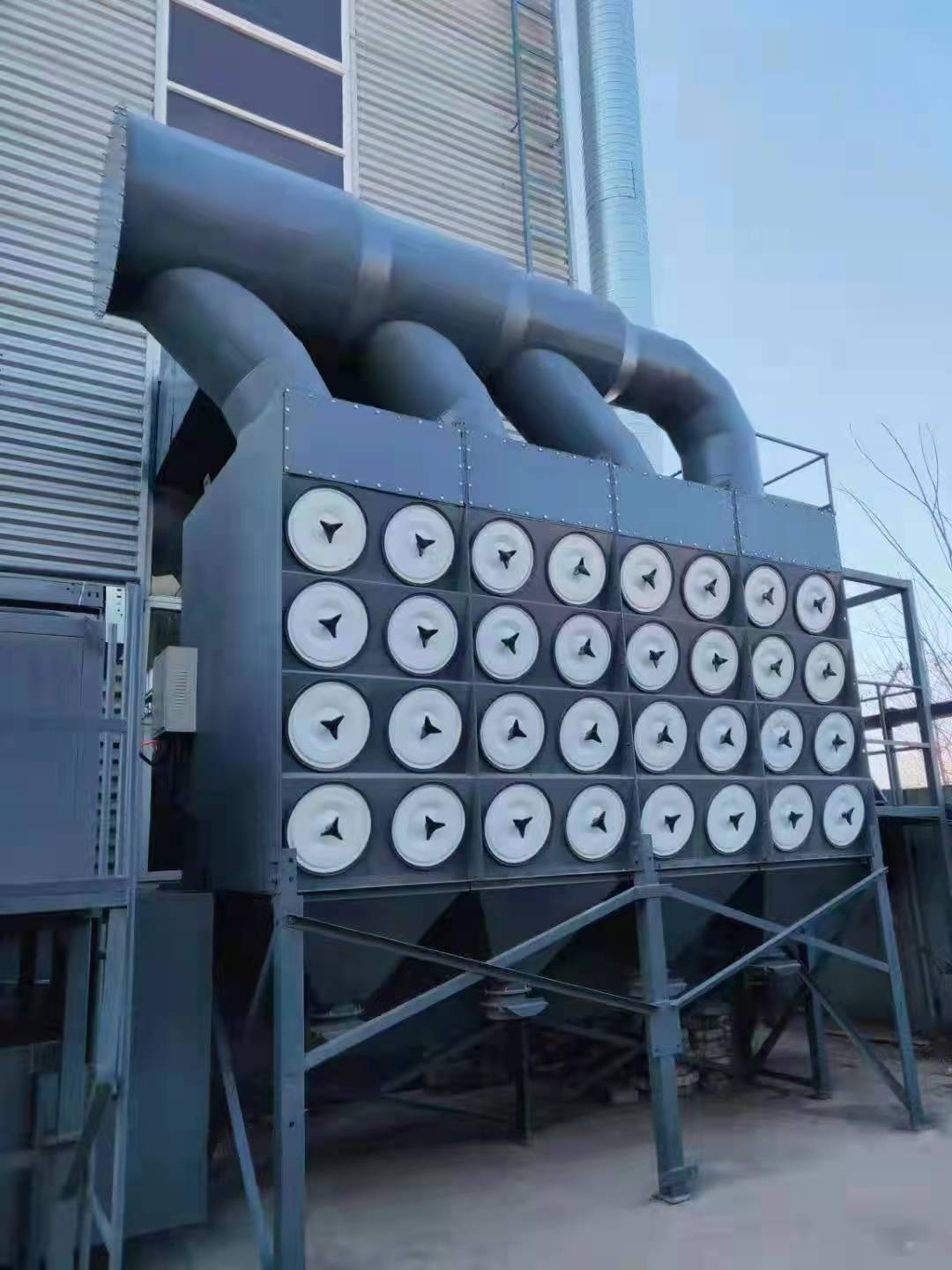

Product detail pictures:
