Filter cages and filter bag cage with venturi for dust collector baghouse
Filter cages and filter bag cage with venturi for dust collector
baghouse

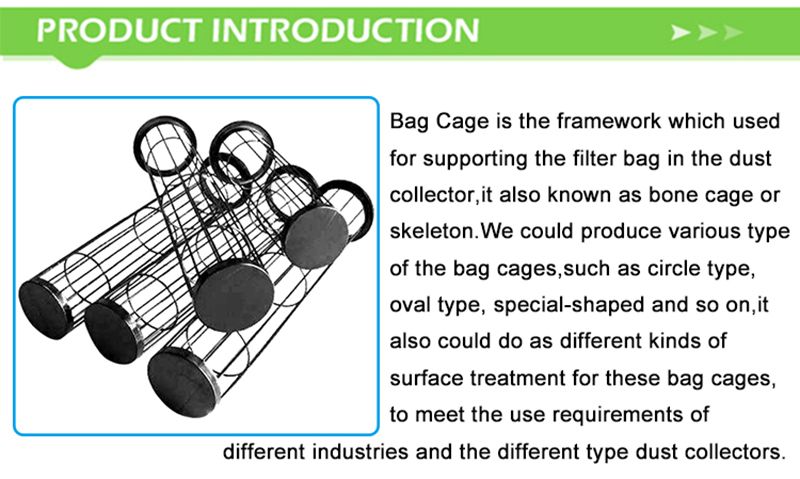

Product Description

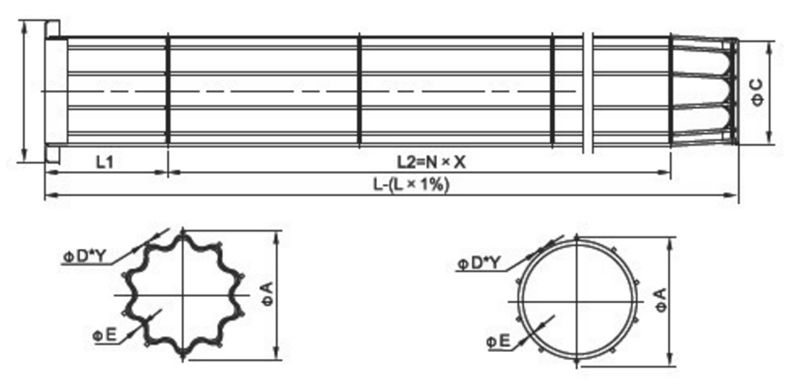

Cage constructions typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4″, 6″ or 8″. If plenum height restrictions are a problem, two piece cages are available in popular “twist-lock” or “fingers” styles. For areas where moisture or acid corrosion present we can provide a range of materials, often galvanized steel or stainless steel. Top load filter cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge. Cages for bottom load baghouses are constructed with a split collar or split ring top. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.
For more efficient cleaning, Venturi are available for all diameter cages. Venturi come in 3″ to 6″ lengths. Venturi are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel

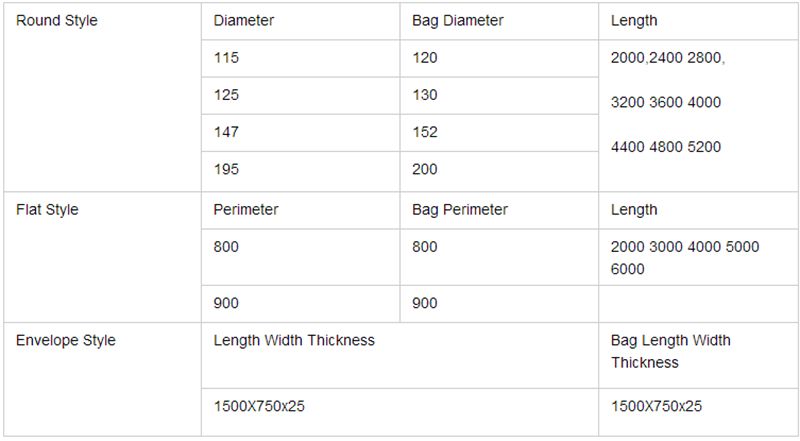

Technical parameter

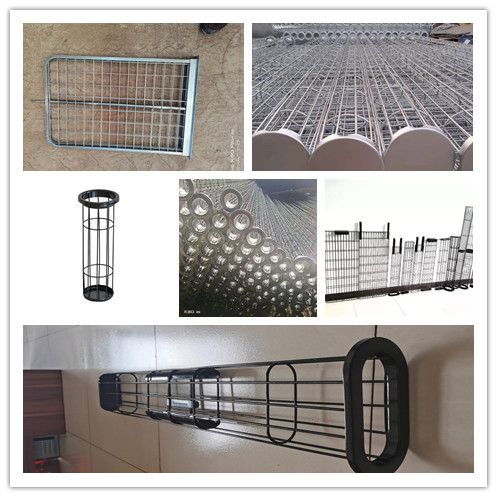

Show details
1. Quality steel wire material, smooth without burrs
2. The plating layer is firm and does not rust, and it is convenient to replace the cloth bag
3. The solder joints are firm, without desoldering, missing soldering and breaking
4. Circular multi-rib design, strong support to prevent damage and deformation
Packaging and shipping
