Galvanized dust removal bag cage spring cage bone

Short Description:

Galvanized dust removal bag cage spring cage bone

Product Description

As the rib of the bag filter, the dust removal frame is easy to install and protect, so people often ignore it when using and testing the bag filter. But the quality of the dust removal framework directly affects the service life of the bag filter. Therefore, when inspecting the dust removal framework, there are several key points to pay attention to: whether the dust removal framework is fully galvanized in one molding, smooth and stiff, without burrs, so that the filter bag is not damaged, the welding is uniform, and the structure is reasonable. Rugged and durable. The trapezoidal skeleton adopts a flat structure. The longitudinal ribs and anti-support rings of the trapezoidal skeleton are evenly distributed, and have sufficient strength to avoid damage and deformation. In order to ensure the strength of the steel wire and improve the appearance quality, we choose φ6.5 yuan The steel is drawn (drawn to φ3mm), and then when it is assembled on the butt welded tyre, it will be ground to meet the skill requirements. The trapezoidal frame is made of organic silicon spraying or galvanizing, spray painting and other skills. The coating is strong and corrosion-resistant, which avoids the rust of the cage bone and the adhesion of the filter bag after the dust collector is operated for a period of time.

photobank (1)

Technical parameter

photobank (2)

Show details

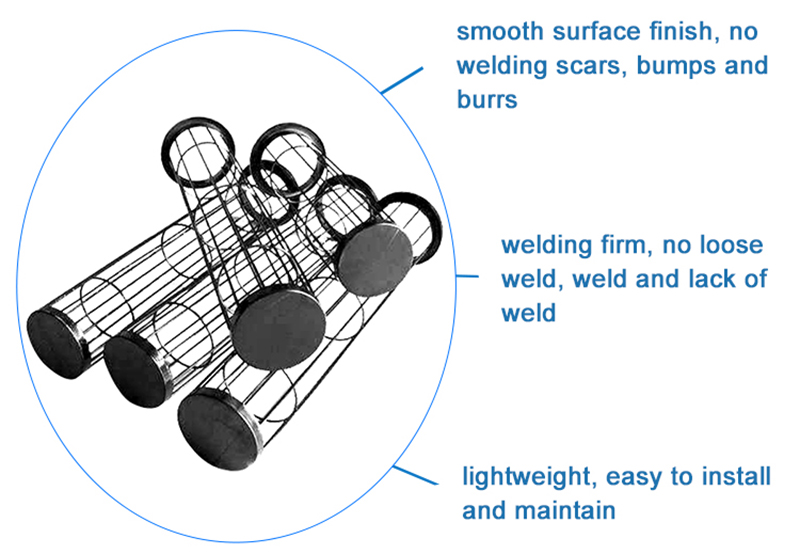

1. Quality steel wire material, smooth without burrs

2. The plating layer is firm and does not rust, and it is convenient to replace the cloth bag

3. The solder joints are firm, without desoldering, missing soldering and breaking

4. Circular multi-rib design, strong support to prevent damage and deformation

Packaging and shipping

photobank (111)




Product Detail

Product Tags

The framework is the "rb"of the filter bag.It is welded once by automatic welding equipment.the welding is firm and the appearance is smooth and straight,so that the filter bag is not damaged.It is light and easy to install and maintain.Zinc plating or plastic spraying process is used for surface post-treatment.
Dust removal framework is one of the indispensable main accessories of cloth bag dust remover. It can be compatible with six, eight, ten, twelve, sixteen, eighteen, twenty, twenty-four bars. The role of dust removal framework is very large, and the quality of the bag seriously affects its service life.It is widely used in metallurgy, chemical industry, coking, power generation, non-ferrous smelting, iron and steel, building materials, coal mining and other industries.
The dedusting skeleton is the rib of the filter bag. It should be light and easy to install and maintain. The quality of the frame directly affects the filtering state and service life of the filter bag.Adopt natural granite, after mechanical processing into circular bending plate, the overall structure is smooth and smooth.It is resistant to erosion, wear and high temperature.Externally cast with high strength heat resistant acid and alkali resistant material.The outer steel plate of the cylinder equipment greatly enhances the strength and service life of the equipment.The body adopts the structure of 1 meter per section, and each joint has concave and convex joints. During installation, furan resin or acid and alkali resistant cement is used to connect the joints to ensure that the joints do not leak.Overcome the common problems of water seepage and air leakage in the joints of the original granite dust collector.The upper water tank is of ceramic structure, and the ceramic dust collector ensures no water leakage in the process of water supply, which avoids the frustration of water seepage in the water tank of the original granite dust collector and enhances the use effect of the dust collector.The installation is simple, usually each section is 1 meter, and the site hoisting can be completed in half a day, reducing the construction cycle.
