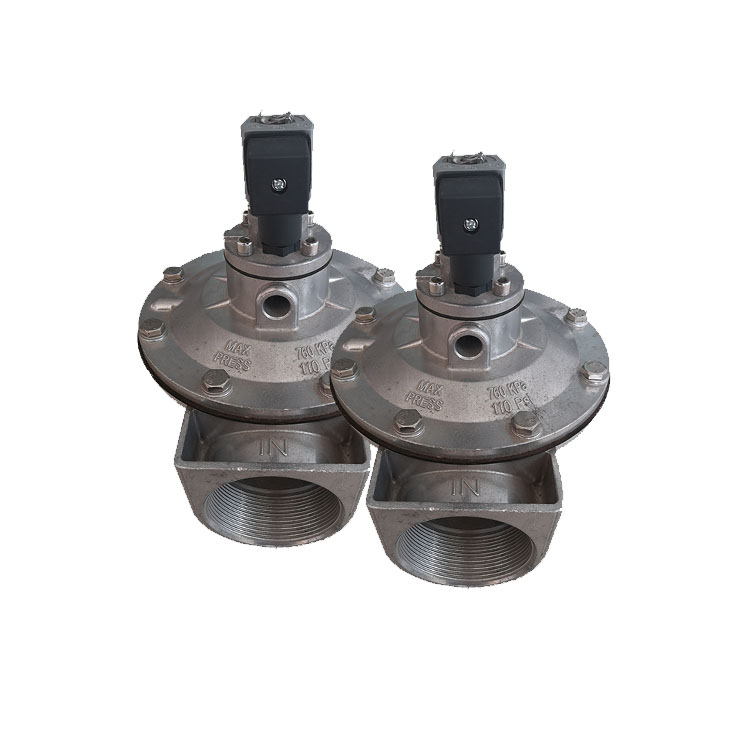

DMF-Z Right Angle Electromagnetic Pulse Valve

Short Description:


Product Detail

Product Tags

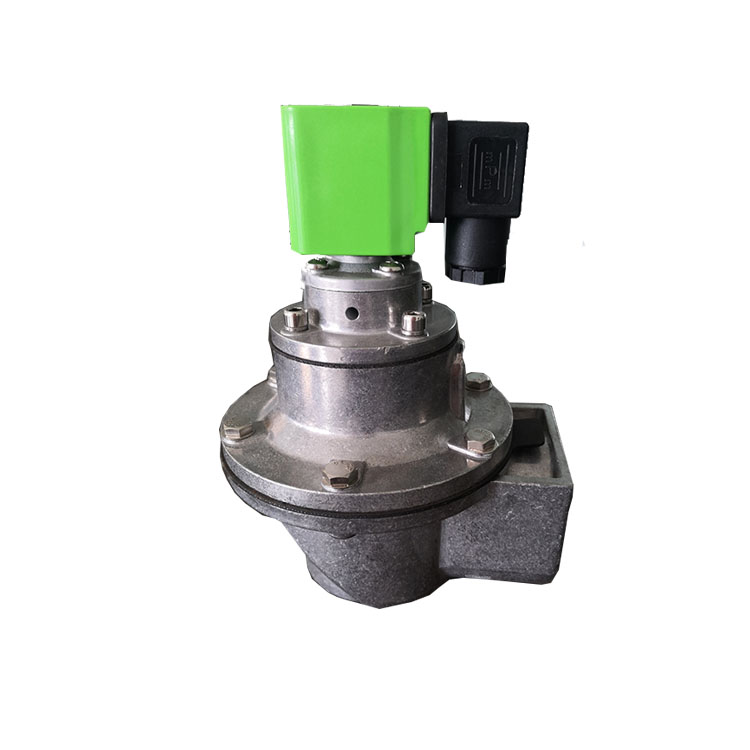

valve 8

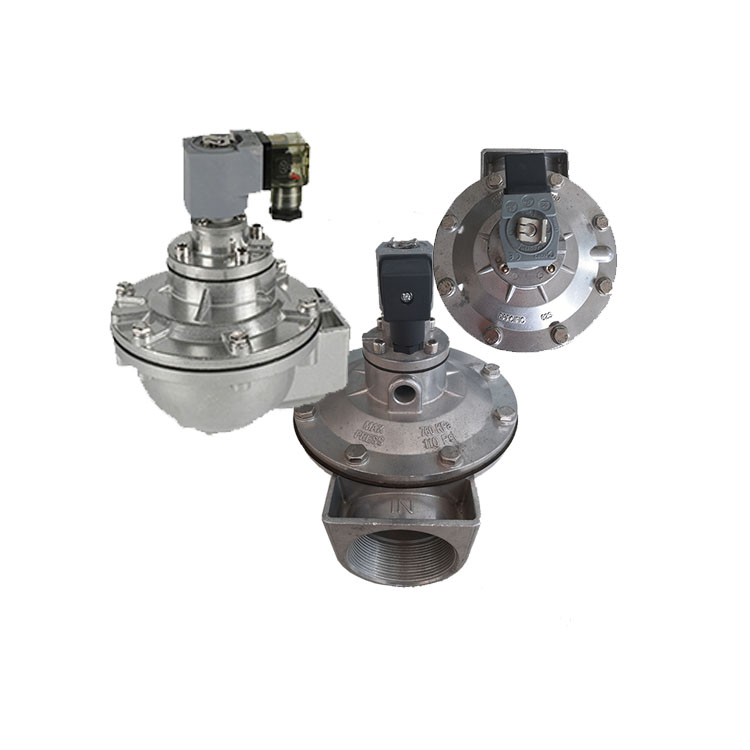

valve 06

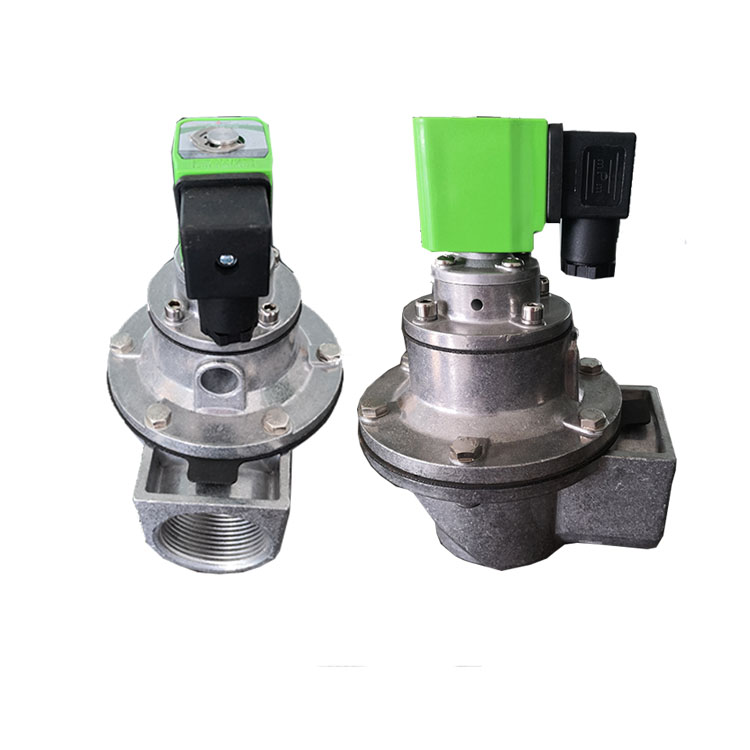

valve 9

DMF-Z Right Angle Electromagnetic Pulse Valve:
The DMF- Z electromagnetic pulse valve is a right angle valve with an angle of 90 degrees between the inlet and outlet, which is suitable for the installation and connection of the air bag and dust collector injection tube. The air flow is smooth and can provide the ash cleaning pulse air flow according to the requirement.
Right Angle solenoid pulse valve is the actuator and key component of pulse jet dust cleaning device, which is mainly divided into three categories: right Angle type, submerged type and straight-through type. The solenoid pulse valve is the compressed air switch of pulse bag dust collector dust cleaning and blowing system.By pulse valve injection controller output signal control, pulse valve is connected with one end of the compressed air package, the other end is connected with the spray pipe, pulse valve back pressure chamber is connected with the control valve, pulse controller controls the control valve and pulse valve open.When the controller has no signal output, the exhaust port of the control valve is closed and the nozzle of the pulse valve is closed.When the controller sends a signal to control the vent is opened, the pulse valve back pressure gas discharge pressure reducing, outdoor produce pressure difference on both sides of diaphragm, diaphragm displacement due to the differential effect, injection pulse valve opens, the compressed air from the air bag, through the pulse valve by spray torch holes out (from the spray torch gas for a wind).Pulse valve life: five years under the condition of standard installation, correct use and reasonable maintenance.

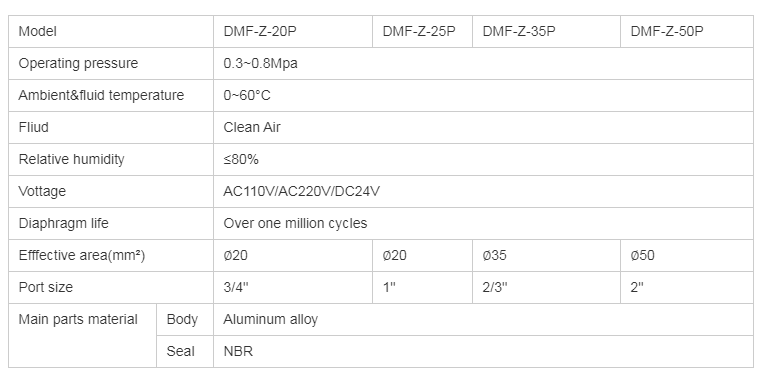

Model No. And Specification

Nominal Diameter

Number of diaphragm

Intake Port Size

Air Outlet
Conn ection Form

Weight (kg)

Metric System
mm

British System

DMF-Z-20

ø20

3/4"

1

G3/4"

G3/4"

0.65

DMF-20L-B

ø20

3/4"

1

G3/4"

ø27

0.75

DMF-Z-25

ø25

1"

1

G1"

G1"

0.8

DMF-Z-40S

ø40

1'/2"

2

G1'/2"

G1'/2"

1.4

DMF-Z-50S

ø50

2"

2

G2"

G2"

2.4

DMF-Z-62S

ø62

2'/2"

2

G2'/2"

G2'/2"

3.5

DMF-Z-76S

ø76

3"

2

G3"

G3"

4.3

DMF-Z-102S

ø102

4"

2

G4"

G4"

7.3

*DMF-Z Right Angle Electromagnetic Pulse

Valve:

image1Product Description

Right Angle Solenoid Electromagnetic Pulse Valve :

The DMF- Z electromagnetic pulse valve is a right angle valve with an angle of 90 degrees between the inlet and outlet, which is suitable for the installation and connection of the air bag and dust collector injection tube. The air flow is smooth and can provide the ash cleaning pulse air flow according to the requirement.
image2 image3 image4 image5 image6 image7 image8
